5.2.2.1. DMR Protocol¶

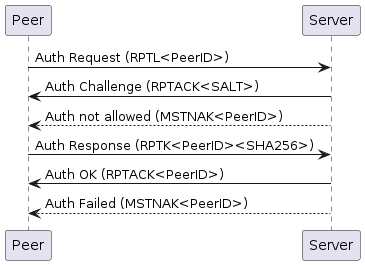

5.2.2.1.1. Peer Authentication¶

@startuml
Peer -> Server: Auth Request (RPTL<PeerID>)
Server -> Peer: Auth Challenge (RPTACK<SALT>)
Server --> Peer: Auth not allowed (MSTNAK<PeerID>)
Peer -> Server: Auth Response (RPTK<PeerID><SHA256>)
Server -> Peer: Auth OK (RPTACK<PeerID>)
Server --> Peer: Auth Failed (MSTNAK<PeerID>)
@enduml

5.2.2.1.2. Peer Ping¶

@startuml
Peer -> Server: Ping (RPTP<PeerID>)
Server -> Peer: Pong (MSTPONG<PeerID>)
@enduml
